BR1 mini
The BR1 Mini is a compact, reliable 4G LTE modem built for precision ag operations that need strong connectivity in the field. Designed to support WiFi-enabled displays, it works with leading systems including Ag Leader InCommand, Trimble Android displays, and Outback Guidance MAX and Rebel. Its flexible compatibility makes it a great option for growers running a variety of equipment and display setups.
Built for dependable performance, the BR1 Mini uses 4G LTE connectivity to help maintain RTK corrections in the field, even in challenging coverage areas. It supports all major cellular carriers giving you flexibility to choose the best fit for your operation. Each unit also includes a high-gain antenna to improve signal strength in weak cellular areas, helping you stay connected when it matters most.
Advantages
- 4G LTE modem
- Low cost WiFi solution
- Perfect for new AgLeader, Trimble and Outback displays
- Ships with high gain roof antenna
- WiFi and wired Ethernet option
- Supports most cellular carriers

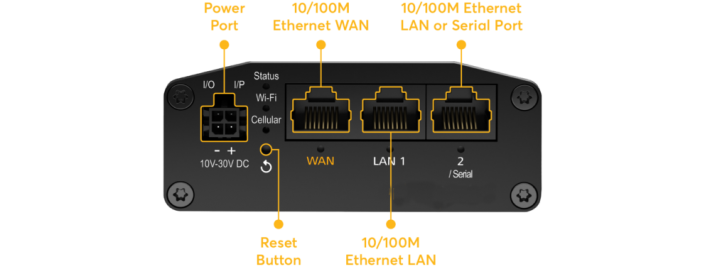

WAN Interface:
1x FE
Embedded 4G LTE Modem with Redundant SIM Slots
LAN Interface:
2x FE
Wi-Fi Interface:
802.11 b/g/n 300 Mbps Wi-Fi WAN and/or AP
Router Throughput:
100Mbps
Recommended Users:
1-60
Cellular and GPS Antenna Connector:
2x SMA Antenna Connectors
1x SMA GPS Antenna Connector
1x Wi-Fi Connector
Power Input:
DC Jack/Terminal Block: 10V-30V DC
Power Consumption:
16W (max)
Dimensions:
5.8 x 5.0 1.6 in
147 x 128 x 40 mm
Weight:
0.96 pounds
435 grams
Operating Temperature:
-40° – 149°F
-40° – 65°C
Humidity:
15% – 95% (non-condensing)
Certifications:
FCC, CE, RoHS, E-Mark,
Class I, Devision II: Hazardous Locations
RF Port Lightning Immunity: ITU-T K.20 (+/- 1.5 kV)
EN 61373: Shock and Vibration Resistance,
EN 50155: Railway Applications – Electronic Equipment used on Rolling Stock,
EN 61000: Electromagnetic Compatibility
Warranty:
1-Year Limiter Warranty
Quick Reference Cards: For basic NTRIP settings and first time set ups
